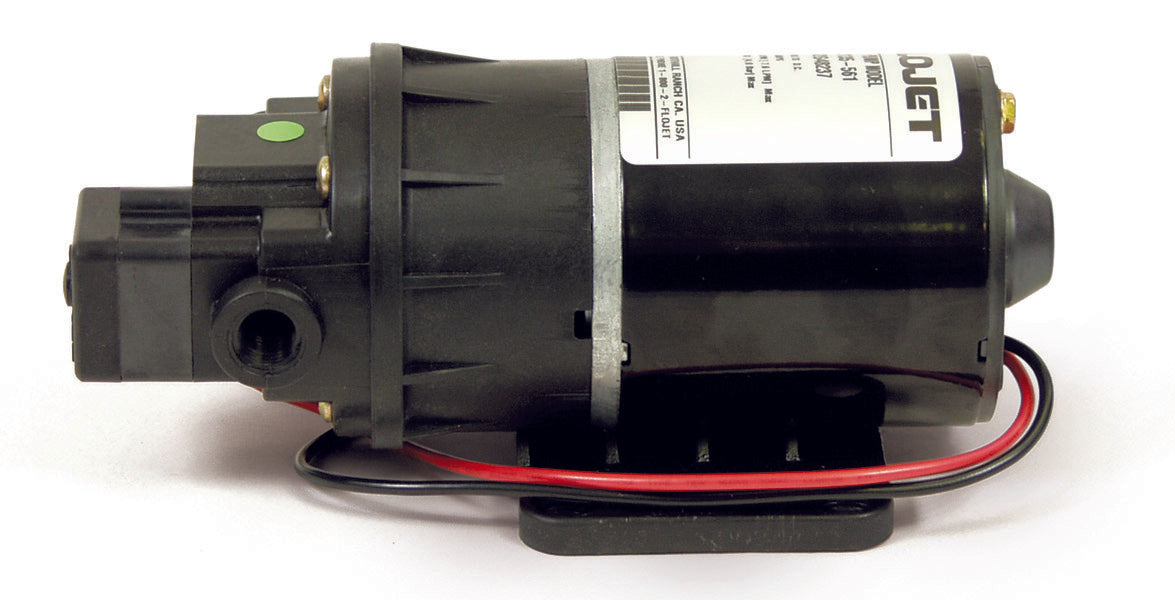

Twin-Diaphragm Spot Spray Pump

• PSI: 35 (#8 tip)
• GPM: 1.0 (open)
• 3/8" Hose barb inlet/outlet
• Self-priming to 2.5 feet
• Operating temperature: 40° - 110°F
• Liquid temperature max: 110°F
• 5 Amp fuse
• Dry Weight: 1.3 lbs
• Chemical-resistant valves and diaphragm
• Compact automatic on-demand operation
• Sealed pressure switch automatically stops pump when discharge valve opens and closes
• Self-priming so pump can be located above supply tank
• Can run dry for extended periods without damage
• Built-in thermal protection on 12V DC motor
• Low-amp draw (2.5 at 25 PSI, 4.0 at 35 PSI)

  • Part No: 8.702-326.0
  • PSI: 35
  • Temperature: 110°F
  • GPM: 1
  • Inlet: 3/8" Hose barb
  • Outlet: 3/8" Hose barb

* Please note part number for reference when contacting your local dealer.
