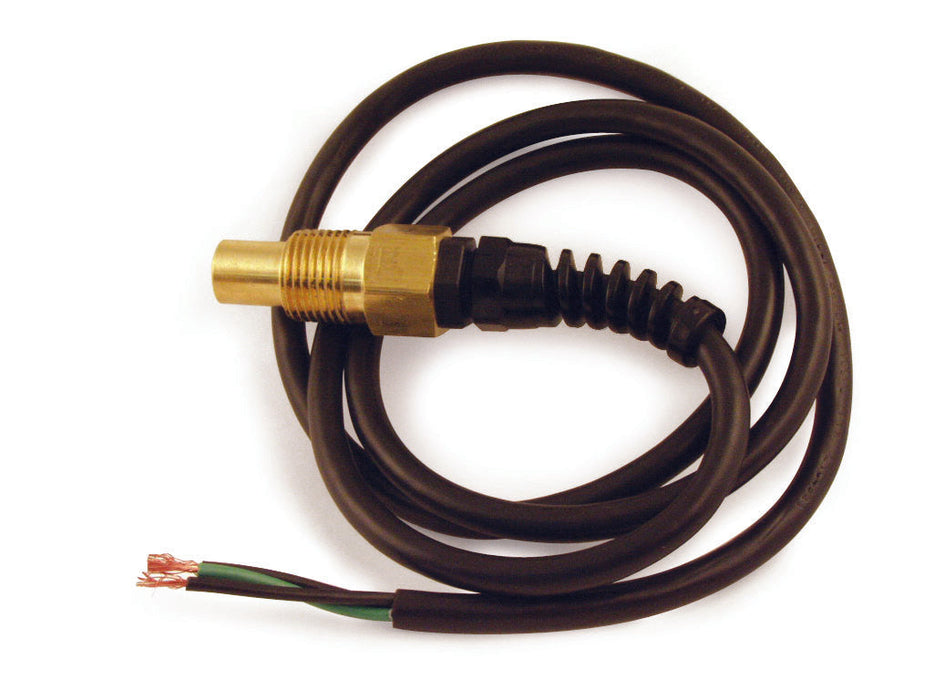

Switches - Thermal - Hi-limit - Snap with Leads

Probe MPT: 1/2"
AMP: 15 at 110V,
AMP: 10 at 220V
1/4" Male Spade
Lug Terminals
1/2" MPT external
thread connects for attaching conduit or PVC wire connectors
UL / CSA Rated, Bimetal Switch Componenets
Does not turn back on until water has cooled 50° - 70°F
Heavy-Duty Brass Housing - 7000 PSI Collapse Rating
Normally used with other adjustable or fixed range thermostat which regulates water temperature
Operates as safety device to shut off burner to prevent machine (water) overheating flashing to steam

Wire Lead: 42"
Temp: 225°F
  • Part No: 8.712-185.0
  • PSI: 7000
  • Temperature: 225°F

* Please note part number for reference when contacting your local dealer.
