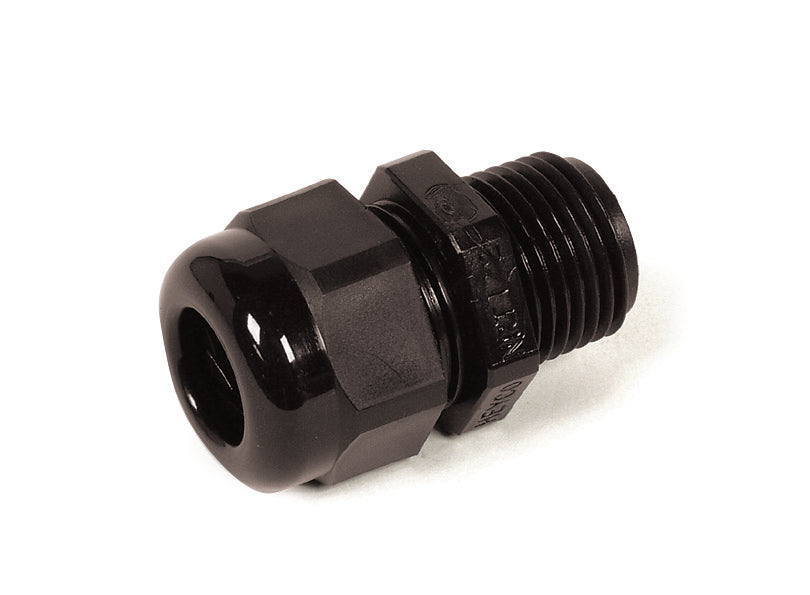

Liquid Tight Connector / Strain Reliefs - For Cable, Wire & Tubing

Keep water-tight NEMA-4 and 4x enclosures water-tight with these unique fittings.
Dome nut with inside taper
As the dome nut is tightened,
the seal ring grips, holding the cable wire or tubing positively in place.
Lead-screw thread
The dome nut can be firmly
tightened due to the high strength
lead-screw thread.
Clamping Splines
Various sizes and odd-shaped cables, wires and tubing can be accommodated due to overlapping diagonally split clamping splines

Type: Dome
Cord OD: .230" - .470"
  • Part No: 9.802-514.0
  • Thread: 1/2" NPT
  • Length: 1.8"
  • Cord Size: 14/3-12/3
SKU 9.802-514.0

* Please note part number for reference when contacting your local dealer.
